CO₂ probe for carbon dioxide equipped with SICRAM module.

HD320B2  is a probe to be used with the HD32.1 Thermal Comfort data logger.

The probe measures the carbon dioxide concentration in air. It’s indicated for checking and monitoring the indoor air quality.

Typical applications are the check of the air quality in all the buildings where there is a

crowd of people (schools, hospitals, auditoria, canteens, etc.), in the working places

to optimize the comfort.

CO₂ measurement is obtained with an infrared special sensor (NDIR technology:

Non-Dispersive Infrared Technology) that, thanks to the use of a double filter

and a special measurement technique, warranties precise, stable and long-term measurements.

The air to check is spread inside the measurement chamber through the protection

membrane placed at the top of the probe.

Measuring range 0 ÷ 5000 ppm. Cable length 2m equipped with SICRAM module.

The probe is calibrated by the company and usually doesn’t request any intervention by the user.

See also HD320A2 for CO measurement.

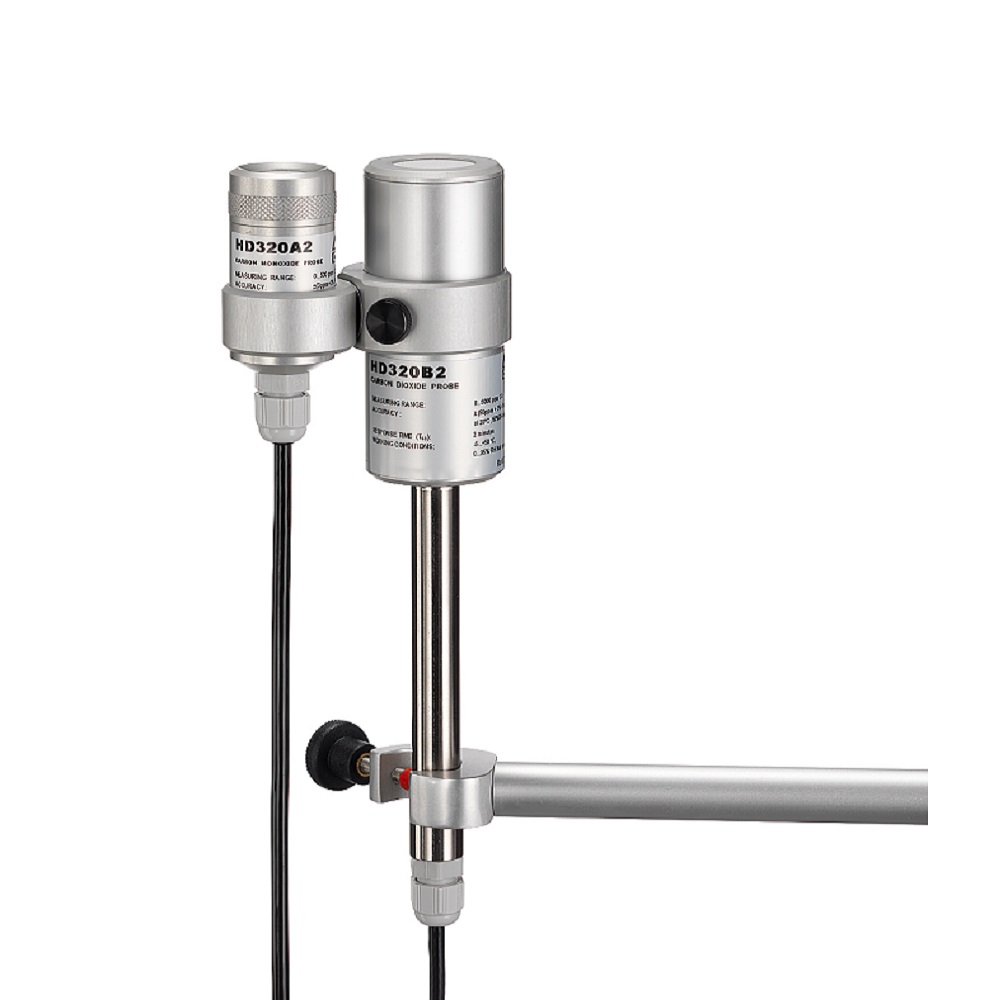

A magnetic support (HD320AS2) can be used for fixing the probe HD320A2 to the housing of probe HD320B2.
