משאבה מיני דיאפרגמה לדוגם ארובות

משאבה דיגום ארובות דגם Ei-838 היא משאבה המתאימה לכל מיכשור דיגום ארובות תוצרת APEX.

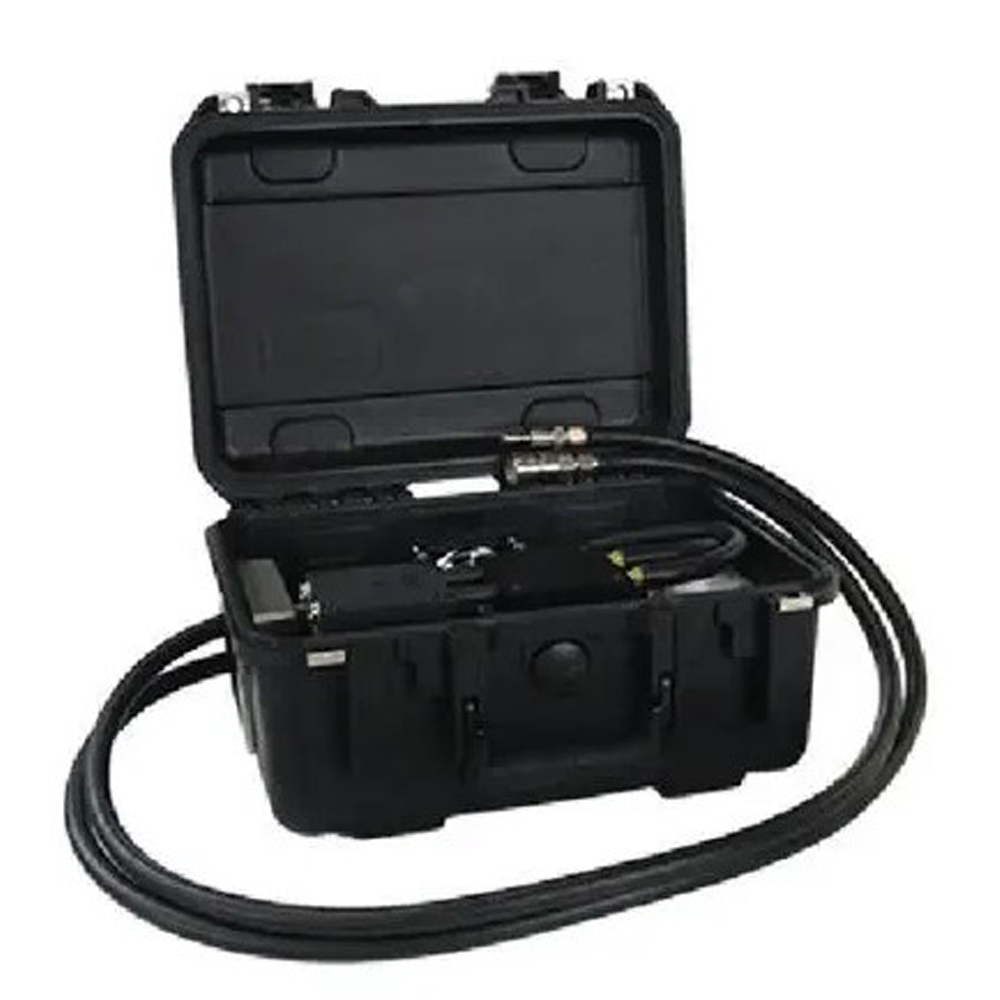

Ei-838 External Sampling Pump

Description

Features:

  • German-made diaphragm pump.
  • Lightweight and compact design.
  • Compatible with all Apex Instruments Sampling Equipment.
  • Easy to attach, self sealing EPDM tubing.
  • Fast and knuckle-friendly durable polypropylene shell.

Specifications:

Motor: 24dc BLDC (Brushless DC) KNF 838 Motor.

Measured Flow: 70 lpm (2.5 cfm) at free flow | 21 lpm (.75 cfm) at 15 inch Hg;

Maximum Vacuum: 25.5” Hg.

Weight: 16 lbs., (7.25kg).



See notes below for doing leak checks on diaphragm pumps in Method 5 sampling.*



For metering systems having diaphragm pumps, the normal leak-check procedure will not detect leakages within the pump. For these cases, the following leak-check procedure is suggested: make a 10-minute calibration run at 0.00035 cubic meters per minute (0.02 cubic feet per minute); at the end of the run, take the difference between the measured wet test meter and the dry gas meter volumes; divide the difference by 10, to get the leak rate. The leak rate should not exceed 0.00057 cubic meters per minute (0.02 cubic feet per minute). [Section No. 3.4.2, Page 5 of 22, Quality Assurance Handbook by EPA, 1980 Version]

מעוניינים במוצר זה?
מלאו פרטיכם ונחזור בהקדם:
