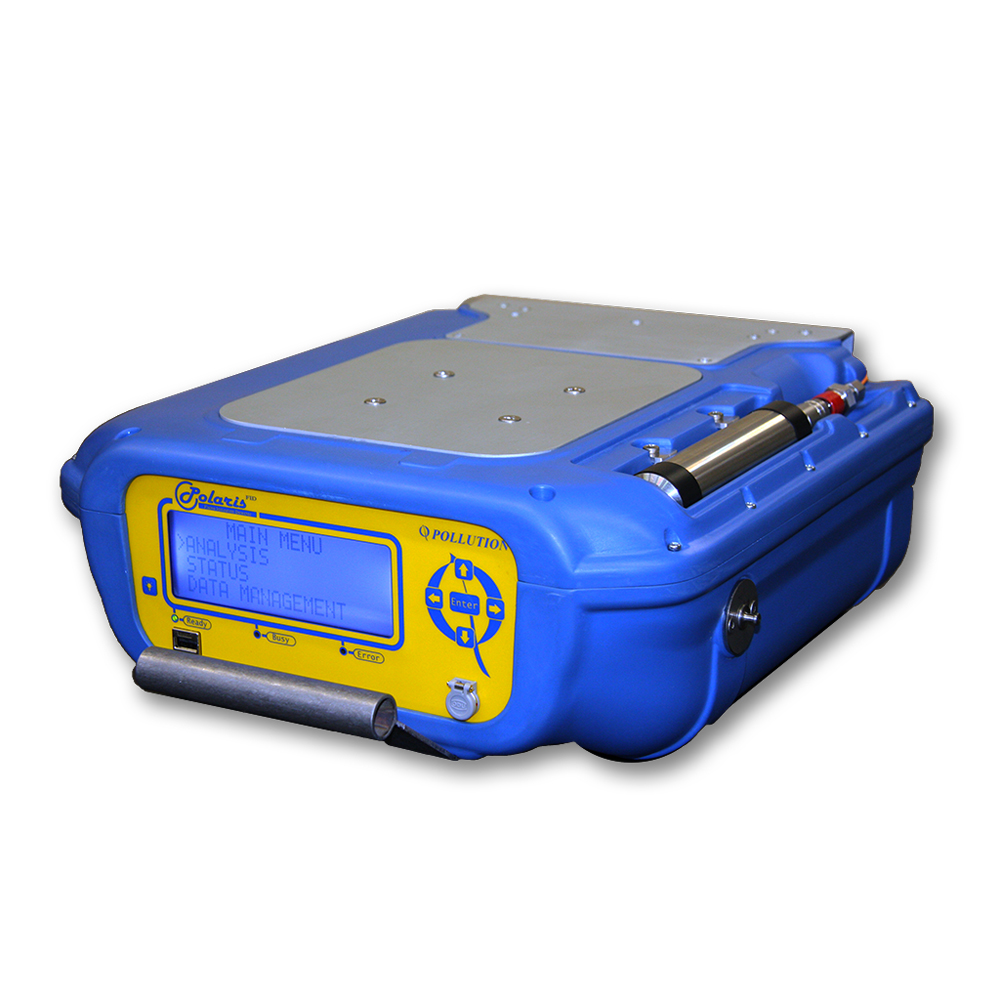

POLARIS FID is an on-site portable TOC Analyser for Stack Emissions
in compliance with EN12619 and EN13526. It is a fully portable instrument
because it incorporates everything needed for the analysis.
The miniaturization of the flame ionization detector (FID) and volumetric
sampling system result in outstanding energy savings and thus allows the
use of built-in rechargeable batteries. It also ensures the highest accuracy
and repeatability of sequence analysis.
Handy and Safe
The compact hydrogen storage cartridge (using an innovative
metal-hydride technology) is integrated into the instrument and self-desorbs
the hydrogen fuel to the flame detector at appropriate pressure and flow.
It is very safe and it does not require pressure regulators; it is a very
handy instrument because it allows to perform continuous analysis for many
Because of its peculiarities, it can be carried by car and plane without any restrictions.
It can be easily recharged in a few hours in the laboratory using a standard
hydrogen tank with regulator or with a hydrogen generator at high output pressure.
Resistant to high Temperature and Humidity
The instrument is designed to be resistant to samples with high temperature and humidity:
This is a typical working condition with hot samples during stack monitoring.
The detector manifold, the sampling lines and all the valves are integrated into a single
block and uniformly heated, in order to eliminate all possible cold spots and avoiding
local sample condensation.
Everything you need
The instrument incorporates everything you need for analysis: batteries, hydrogen
storage accumulator, pump and Activated Charcoal filter for the flame air, span gas
cylinder for the calibration and technical air cylinder for high accuracy and precision.
The sample inlet, with double filter, is compatible with all sampling lines on the market.
It is equipped with comfortable shoulder strap for field use, also available as a front-bag.
The integrated microprocessor automatically controls several parameters:
Ignition and flame monitoring, setup of parameters chose by the user according to the
analytical method, diagnostic checks, life monitoring of the gas cans and energy reserves,
sampling lines cleaning cycles, calibration procedures.
– Rechargeable battery operations -> fully portable
– Integrated hydrogen accumulator -> safe and compact
– Zero Air and Span Gas integrated into the chassis -> ergonomic and lightweight
– Volumetric sampling heated line -> accurate and precise
– Alphanumeric display and USB port for uploading methods and downloading data analysis –
> easy and advanced
