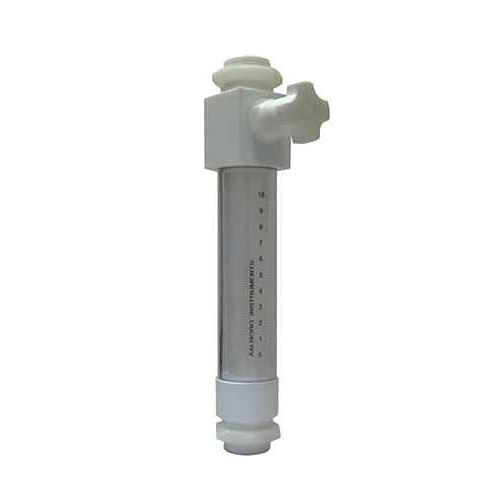

Made entirely of PTFE, PFA, and PCTFE, the model F flow meter is excellent for high-purity applications or use with corrosive liquids. Units are available with a standard valve to monitor and control flow or without a valve to just monitor flow.
Flow meters are individually tested on a Mass Spectrometer Leak Detector and certified to a leak integrity rating of 1 X 10-7 sccs Helium or better.
|SCALES 0 to 10 markings|
|STANDARD ACCURACY ±5% FS|
|MAXIMUM OPERATING PRESSURE 100 psig (6.7 bars)|
|MAXIMUM OPERATING TEMPERATURE 250°F (121°C)|
|LEAK INTEGRITY individually leak tested and certified to a rating of 1 x 10-7 sccs of helium|
|MATERIALS OF CONSTRUCTION|
|FLOW TUBES PFA|
|TUBE SHIELD polycarbonate|
|WETTED PARTS PTFE end fittings, PCTFE guide rods|
|CONNECTIONS 1/4 inch FNPT to 3/4 inch FNPT based on model selected|
