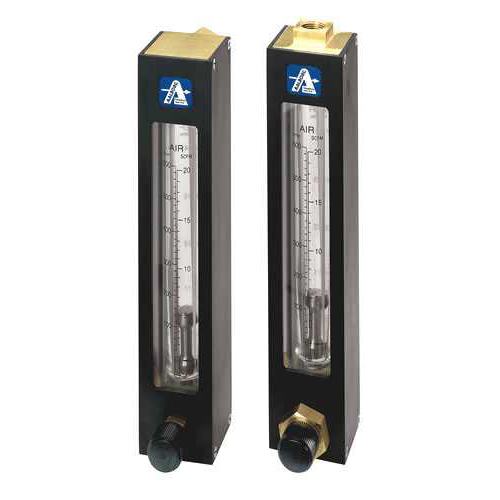

model V

brass or stainless steel medium range

model V brass or stainless steel medium range

Incorporating traditional rotameter precision glass technology, these rugged brass and stainless steel flow meters offer accurate and economical solutions to medium flow range measurements. V meters are designed with unique rotatable scales of dual air-water direct reading graduations showing SCFM and SLPM (air), as well as GPM and LPM (water) markings.

SPECIFICATIONS
SCALES rotatable direct reading air (SCFM-SLPM) and water (GPM-LPM)
STANDARD ACCURACY ±5% FS
MAXIMUM OPERATING PRESSURE 150 psig at 200°F (10.3 bars at 93°C)
MAXIMUM OPERATING TEMPERATURE 250°F (121°C)
MATERIALS OF CONSTRUCTION
FLOW TUBES heavy walled precision formed borosilicate glass
FLOATS 316 stainless steel
TUBE SHIELD polycarbonate
WETTED PARTS brass or 316 stainless steel
SEALS Viton® o-rings standard; optional Buna-N, PTFE/Kalrez®, EPR
CONNECTIONS 3/8 inch NPT female in line or horizontal rear
VITON® and KALREZ® are registered trademarks of DuPont Dow Elastomers
